Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel

Brand Name : TECHWELL

Model Number : TW-FDM1000

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : Contact Us

Payment Terms : 40% T/T in advance, 60% T/T before shipment

Supply Ability : 20 Sets

Delivery Time : 55-65 working days

Packaging Details : Standard Packing

Material : Galvanized steel sheet

Material Thickness : 0.8 --1.2 mm

Controlling System : PLC

Forming Speed : 10-12 m/ min

Main Motor Power : 18.5kw

Hydraulic Station Power : 4kw

Contact Now

Steel Structure Floor Deck Roll Forming Machine for Making Steel Structure Floor Decking Panel

A). Introduction


The floor deck produced by Floor deck roll forming machine is used for floor decking in building. We need't dismantle the mould after pouring concrete, so we can finish the project as soon as we can. Normally, the raw material for decking floor is glazed galvanized sheet, we needn't decorate the ceiling again, due to it is beautiful enough.

This series product is suitable for steel structure factory and public great building.

B). Main Components

  • Decoiler -------------------------------------------- 1 Unit
  • Feeding -------------------------------------------- 1 Unit
  • Main roll forming machine ------------------------- 1 Unit
  • Hydraulic cutting device --------------------------- 1 Unit
  • Hydraulic Station ----------------------------------- 1 Unit
  • PLC computer control ------------------------------ 1 Unit
  • Output table ---------------------------------------- 1 Unit

C). Main Specifications

  1. Material Spec: Galvanized steel sheet
  2. Thickness of Coil Sheet: 0.8 --1.2 mm
  3. Main Motor Power: 18.5kw
  4. Forming Speed: 10--12m/min
  5. Hydraulic Station Power: 4kw
  6. Quantity of Stands: About 24 groups
  7. Hydraulic Pressure: 10~12Mpa
  8. Controlling System: PLC
  9. Index Error of Length: 10m±1.5mm
  10. Total Weight: About 1800kg
  11. Voltage: 380V 3 phase 50Hz or at buyers requirement

D). Working Flow

Decoil -- Feeding -- Roll Forming -- Automatic Cutting -- Output Table

E). Competitive Advantages

1. High Quality

2. Reasonable Price

3. Good after Service

4. Free Machine Design

5. 1 Year Warranty

6. More Than 10 Years Experience

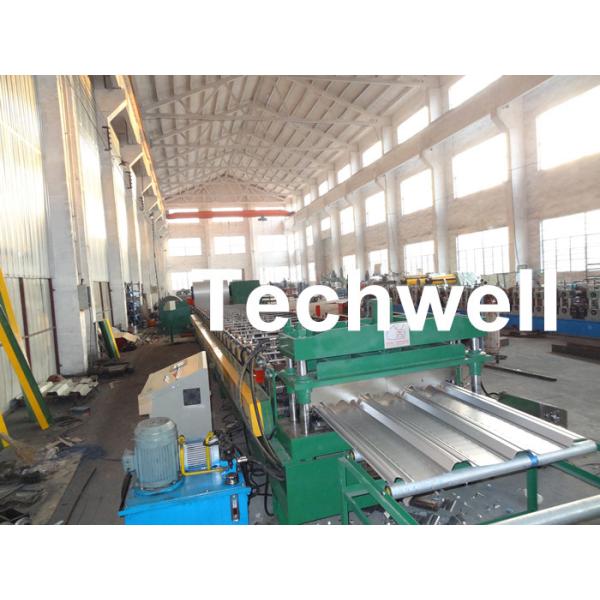

F). Machine Products Pictures

Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel

G). Output Products Pictures

Steel Structure Floor Deck Roll Forming Machine for Making Metal Structure Floor Decking Panel

H). Applications

Steel floor deck, metal deck, steel deck, metal decking sheet, steel structure floor deck...

I). FAQ

Q: Do you sell only standard machines?

A: No, most of our machines are built according to customers specifications, using top brand name components.

Q: What size decoiler can you supply us with?

A: From 5-ton decoiler to a 25-ton motorised hydraulic decoiler.

Q: Do you have a warranty on your machines?

A: One year warranty excluding electrical components.

Q: Do you have instruction manuals?

A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings.

Q: Once a machine arrives at our factory what happens then?

A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: My current machine rollers need to be replaced. Would you be able to assist me?

A: Yes. Send us your profile and specifications then we will manufacture the rollers for you.

Item Contact Methods
Contact Person Lemon
E-mail / Skype sales@wxtechwell.com
Tel / Whatsapp/ IMO +86-15861597732

Website

https://www. wxtechwell.com
Reference Videos

https://youtu.be/DGsaRUg8THM

https://youtu.be/5wPYdH9njRc

https://youtu.be/1Mdtcelc-8I
